| 型名 | 社名 Mnf. |
用途 App. |
構造 Type |

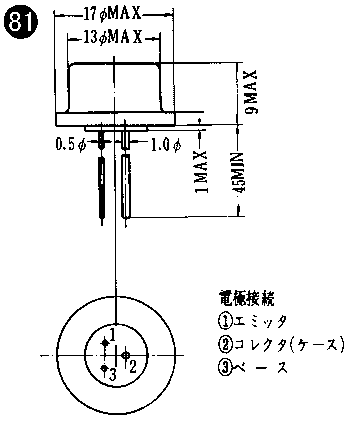

最大定格 Max. Ratings (Ta=25ﾟC) | 電気的特性 Elec. Character. (Ta=25ﾟC) | 外形 Pac. Dim. No. |
備考 | ||||||||
| VCBO | VEBO | Ic | Pc | Tj | 直流又はパルスhFE | fab/ft* | Cob | ||||||||
| (V) | (V) | (mA) | (mW) | (ﾟC) | VCE(V) | Ic(mA) | (MHz) | (pF) | |||||||
| 2SB101 | 日電 | AF.PA | Ge.A | -30 | -10 | -50 | 125 | 75 | 1.2 | 35 | 84A | 2S101 ST34F | |||
| 2SB102 | " | " | " | -30 | -10 | -50 | 180 | 75 | 1.2 | 35 | 91 | 2S102 ST34FR | |||
| 2SB103 | " | " | " | -30 | -10 | -100 | 125 | 75 | 70 | -1 | -50 | 1.2 | 84A | 2S103 ST34G | |
| 2SB104 | " | " | " | -30 | -10 | -100 | 180 | 75 | 70 | -1 | -50 | 1.2 | 91 | 2S104 ST34GR | |
| 2SB105 | " | " | " | -30 | -10 | -500 | 500 | 75 | 70 | -2 | -200 | 0.5 | 81 | 2S105 ST35 | |
| 2SB106 | " | " | " | -30 | -10 | -500 | 3W(放熱板付) | 75 | 70 | -2 | -200 | 0.5 | 95 | 2S106 ST35R | |
| 2SB107 | " | " | " | -30 | -2A | 10W(Tc=25ﾟC) | 75 | 70 | -2 | -1A | 0.4 | 102 | 2S107 ST36 | ||
| 2SB107A | " | " | " | -60 | -3A | 20W(Tc=25ﾟC) | 75 | 70 | -2 | -1A | 0.4 | 102 | 2S107 ST36A | ||
| 2SB108 | " | PA | " | -40 | -10 | -500 | 500 | 75 | 70 | -2 | -200 | 0.5 | 81 | ||
| 2SB108A | " | " | " | -60 | -10 | -500 | 500 | 75 | 70 | -2 | -200 | 0.5 | 81 | ||
| 2SB108B | " | " | " | -80 | -10 | -500 | 500 | 75 | 70 | -2 | -200 | 0.5 | 81 | ||
| 2SB109 | " | " | " | -40 | -10 | -500 | 3W(放熱板付) | 75 | 70 | -2 | -200 | 0.5 | 95 | ||
| 2SB109A | " | " | " | -60 | -10 | -500 | 3W(放熱板付) | 75 | 70 | -2 | -200 | 0.5 | 95 | ||
| 2SB109B | " | " | " | -80 | -10 | -500 | 3W(放熱板付) | 75 | 70 | -2 | -200 | 0.5 | 95 | ||
| 2SB110 | " | AF | " | -25 | -10 | -50 | 100 | 85 | 1 | 19A | ST330 | ||||
| 2SB111 | " | " | " | -25 | -10 | -50 | 100 | 85 | 1 | 19A | ST331 | ||||
| 2SB112 | " | " | " | -25 | -10 | -50 | 100 | 85 | 1 | 19A | ST332 | ||||
| 2SB113 | " | " | " | -25 | -10 | -50 | 100 | 85 | 1 | 19A | ST333 | ||||
| 2SB114 | " | PA | " | -25 | -10 | -50 | 100 | 85 | 65 | -1 | -20 | 1.5 | 19A | ST381 | |
| 2SB115 | " | " | " | -25 | -10 | -50 | 100 | 85 | 85 | -1 | -20 | 1.5 | 19A | ST382 | |
| 2SB116 | " | " | " | -25 | -10 | -50 | 100 | 85 | 110 | -1 | -20 | 1.5 | 19A | ST383 | |
| 2SB117 | " | " | " | -25 | -10 | -50 | 100 | 85 | 140 | -1 | -20 | 1.5 | 19A | ||
| 2SB118 | 松下 | " | " | -15 | -10 | -1.5A | 50W(Tc=25ﾟC) | 75 | 60 | -7 | -0.3A | 0.2 | 102 | ||
| 2SB119 | " | " | " | -32 | -10 | -1.5A | 50W(Tc=25ﾟC) | 75 | 60 | -7 | -0.3A | 0.2 | 102 | OC19 | |
| 2SB120 | 富士通 | AF | " | -32 | -2.5 | -20 | 150 | 85 | 12A | ||||||
| 2SB121 | 富士通 | SW | Ge.A | -105 | -50 | -100 | 50 | 85 | 60 | -0.35 | -5 | 0.5 | 12A | ||
| 2SB122 | 東芝 | " | " | -80 | -40 | -1.5A | 20W(Tc=25ﾟC) | 75 | 60 | -1.5 | -1A | 0.25 | 102 | ||
| 2SB123 | " | " | " | -40 | -30 | -5A | 20W(Tc=25ﾟC) | 75 | 0.25 | <300 | 102 | ||||
| 2SB124 | " | " | " | -60 | -25 | -15A | 40W(Tc=25ﾟC) | 75 | 70 | -1.5 | -15A | 0.3 | 107 | ||
| 2SB125 | " | " | " | -36 | -25 | -15A | 40W(Tc=25ﾟC) | 75 | 70 | -1.5 | -15A | 0.3 | 107 | ||
| 2SB126 | 松下 | PA | " | -32 | -10 | -3.5A | 30W(Tc=<45ﾟC) | 90 | 35 | -1 | -1A | fae=6kc | 102 | OC26 | |
| 2SB126A | 松下 | SW | Ge.A | -60 | -10 | -3.5A | 40W(Tc=<45ﾟC) | 90 | 35 | -1 | -1A | 102 | |||
| 2SB127 | " | PA | " | -32 | -10 | -3.5A | 30W(Tc=<45ﾟC) | 90 | 75 | -1 | -1A | fae=6kc | 102 | OC27 | |
| 2SB127A | 松下 | SW | Ge.A | -60 | -10 | -3.5A | 40W(Tc=45ﾟC) | 90 | 75 | -1 | -1A | 102 | |||
| 2SB128 | " | PA | " | -80 | -40 | -6A | 30W(Tc=<45ﾟC) | 90 | 40 | -1 | -1A | 102 | OC28 | ||
| 2SB128A | " | " | " | -120 | -60 | -6A | 54W(Tc=25ﾟC) | 90 | 50 | -1 | -1A | 102 | |||
| 2SB129 | " | " | " | -80 | -40 | -6A | 54W(Tc=25ﾟC) | 90 | 85 | -1 | -1A | 102 | OC29 | ||
| 2SB129A | " | " | " | -120 | -60 | -6A | 54W(Tc=25ﾟC) | 90 | 85 | -1 | -1A | 102 | |||
| 2SB130 | " | " | " | -32 | -10 | -1.5A | 6.5W(Tc=25ﾟC) | 75 | 60 | -7 | -0.3 | 0.2 | 100 | OC30 | |
| 2SB131 | 富士通 | " | " | -40 | -12 | -1.5A | 65W(Tc=25ﾟC) | 90 | 65 | -1.5 | -1A | fae=5kc | 102 | 2S131 | |
| 2SB131A | " | " | " | -40 | -12 | -1.5A | 65W(Tc=25ﾟC) | 90 | 65 | -1.5 | -1A | fae=5kc | 102 | ||
| 2SB132 | " | " | " | -60 | -12 | -1.5A | 65W(Tc=25ﾟC) | 90 | 65 | -1.5 | -1A | fae=5kc | 102 | ||
| 2SB134 | 三菱 | AF.LN | " | -30 | -15 | -100 | 100 | 85 | NF-4dB(f=1kHz,Ic=0.5mA) | 12B | |||||
| 2SB135 | " | AF | " | -30 | -15 | -100 | 100 | 85 | 12B | ||||||
| 2SB136 | " | PA | " | -25 | -12 | -150 | 150 | 85 | 120 | -1.5 | -50 | 12B | |||
| 2SB136A | 三菱 | PA | Ge.A | -60 | -12 | -300 | 150 | 85 | 120 | -1.5 | -50 | 12B | |||
| 2SB137 | " | " | " | -30 | -15 | -5A | 30W(Tc=25ﾟC) | 85 | 80 | -1.5 | -1A | 103 | |||
| 2SB138 | " | " | " | -60 | -30 | -5A | 30W(Tc=25ﾟC) | 85 | 80 | -1.5 | -1A | 103 | |||
| 2SB140 | ソニー | " | " | -40 | -12 | -1.5A | 12W(Tc=25ﾟC) | 85 | 74 | -1.5 | -1A | fae=7kc | 200 | 103 | 2T301 |
| 2SB141 | " | " | " | -60 | -12 | -1.5A | 12W(Tc=25ﾟC) | 85 | 74 | -1.5 | -1A | fae=7kc | 200 | 103 | 2T302 |
| 2SB142 | " | " | " | -30 | -12 | -1A | 10W(Tc=25ﾟC) | 85 | 24 | -1.5 | -1A | fae=7kc | 200 | 103 | 2T303 |
| 2SB143 | " | " | " | -30 | -12 | -1A | 10W(Tc=25ﾟC) | 85 | 37 | -1.5 | -1A | fae=7kc | 200 | 103 | 2T303 |
| 2SB144 | " | " | " | -30 | -12 | -1A | 10W(Tc=25ﾟC) | 85 | 75 | -1.5 | -1A | fae=7kc | 200 | 103 | 2T303 |
| 2SB145 | " | " | " | -30 | -12 | -1A | 10W(Tc=25ﾟC) | 85 | 37 | -1.5 | -1A | fae=7kc | 200 | 103 | 2T304 |
| 2SB146 | " | " | " | -30 | -12 | -1A | 10W(Tc=25ﾟC) | 85 | 75 | -1.5 | -1A | fae=7kc | 200 | 103 | 2T304 |
| 2SB147 | " | " | " | -60 | -12 | -1.5A | 12W(Tc=25ﾟC) | 85 | 60 | -1.5 | -200 | fae=7kc | 200 | 103 | |
| 2SB148 | 東芝 | SW | " | -80 | -25 | -15A | 40W(Tc=25ﾟC) | 75 | 70 | -1.5 | -15A | 0.3 | 107 | ||
| 2SB149 | " | " | " | -40 | -30 | -8A | 25W(Tc=25ﾟC) | 75 | 60 | -1.5 | -8A | 0.25 | <400 | 102 | |
| 2SB150 | 東芝 | SW | Ge.A. | -105 | -50 | -40 | 50 | 75 | 35 | -0.35 | -5 | 0.5 | <20 | 12A | 2S150 |
| 2SB151 | 富士通 | " | " | -80 | -60 | -5A | 50W(Tc=25ﾟC) | 100 | 40 | -1.5 | -3A | fae=5kc | 102 | ||
| 2SB152 | " | " | " | -100 | -60 | -5A | 50W(Tc=25ﾟC) | 100 | 40 | -1.5 | -3A | fae=5kc | 102 | ||
| 2SB152A | " | " | " | -100 | -60 | -5A | 50W(Tc=25ﾟC) | 100 | 70 | -1 | -1A | fae=4.5kc | 102 | ||
| 2SB153 | 日立 | AF | " | -12 | -2.5 | -70 | 150 | 85 | 12A | ||||||
| 2SB154 | " | PA | " | -12 | -2.5 | -70 | 150 | 85 | 70 | -1.5 | -50 | 12A | |||
| 2SB155 | " | AF | " | -16 | -2.5 | -300 | 150 | 85 | 1.4 | 12A | |||||
| 2SB156 | " | PA | " | -16 | -2.5 | -300 | 150 | 85 | 70 | -1 | -150 | 12A | |||
| 2SB156A | " | " | " | -20 | -6 | -300 | 150 | 85 | 70 | -1 | -150 | 12A | |||
| 2SB157 | 松下 | AF | " | -7 | -7 | -5 | 10 | 55 | fae>10kc | 2A | OC57 | ||||
| 2SB158 | " | " | " | -7 | -7 | -5 | 10 | 55 | fae>10kc | 2A | OC58 | ||||
| 2SB159 | " | AF | " | -7 | -7 | -5 | 10 | 55 | fae>10kc | 2A | OC59 | ||||
| 2SB160 | " | PA | " | -7 | -7 | -5 | 10 | 55 | 75 | -2 | -0.5 | 2A | OC60 | ||
| 2SB161 | 日電 | " | " | -30 | -100 | 125 | 75 | 50 | -1 | -50 | 0.65 | 84A | 2S161 ST341 | ||
| 2SB162 | " | " | " | -30 | -100 | 180 | 75 | 50 | -1 | -50 | 0.65 | 91 | 2S162 ST341R | ||
| 2SB163 | " | " | " | -30 | -100 | 125 | 75 | 70 | -1 | -50 | 0.8 | 84A | 2S163 ST342 | ||
| 2SB164 | " | " | " | -30 | -100 | 180 | 75 | 70 | -1 | -50 | 0.8 | 91 | 2S164 ST342R | ||
| 2SB165 | " | " | " | -30 | -100 | 125 | 75 | 100 | -1 | -50 | 1 | 84A | 2S165 ST343 | ||
| 2SB166 | " | " | " | -30 | -100 | 180 | 75 | 100 | -1 | -50 | 1 | 91 | 2S166 ST343R | ||
| 2SB168 | 富士通 | AF | " | -9 | -2.5 | -100 | 150 | 85 | 0.8 | 12A | |||||
| 2SB169 | " | PA | " | -9 | -2.5 | -100 | 150 | 85 | 80 | -1 | -50 | 12A | |||
| 2SB170 | 松下 | AF | " | -30 | -10 | -100 | 125 | 85 | 12B | OC70 | |||||
| 2SB171 | " | " | " | -30 | -10 | -100 | 125 | 85 | 12B | OC71 | |||||
| 2SB172 | " | PA | " | -32 | -10 | -125 | 125 | 85 | 50 | -1 | IB=-2mA | 0.35 | 12B | 2SD31とコンプリ | |
| 2SB173 | " | LN | " | -30 | -10 | -100 | 125 | 85 | 12B | 2S74 | |||||
| 2SB174 | " | PA | " | -20 | -6 | -300 | 225 | 75 | 65 | -0.5 | -300 | 1.5 | 12B | OC74 | |
| 2SB175 | " | AF | " | -30 | -10 | -100 | 125 | 85 | 12B | OC75 | |||||
| 2SB176 | " | PA | " | -32 | -10 | -125 | 125 | 85 | 90 | -1 | IB=-2mA | 12B | 2SD32とコンプリ | ||
| 2SB177 | " | " | " | -60 | -10 | -125 | 125 | 85 | 90 | -1 | IB=-2mA | 12B | OC77 | ||
| 2SB178 | " | " | " | -20 | -6 | -300 | 225 | 85 | 56 | VCB=0V | -300 | 17 | 2SD178とコンプリ | ||
| 2SB178A | 松下 | PA | Ge.A | -40 | -6 | -320 | 225 | 85 | 56 | VCB=0V | 1300 | 17 | 2SD178Aとコンプリ | ||
| 2SB179 | 東芝 | AF | " | -25 | -12 | -50 | 80 | 75 | 124 | 2S179 | |||||
| 2SB180 | 富士通 | PA | " | -40 | -12 | -0.5A | 5.5W(Tc-251C) | 92 | 70 | -1.5 | -500 | 83 | |||
| 2SB180A | " | " | " | -40 | -12 | -0.5A | 12W(Tc=25.C) | 90 | 70 | -1.5 | -500 | fae=13kc | 83 | ||
| 2SB181 | " | " | " | -60 | -12 | -0.5A | 5.5W(rc=25'C) | 92 | 70 | -1.5 | -500 | 83 | |||
| 2SB181A | " | " | " | -60 | -12 | -0.5A | 12W(Tc=25'C) | 90 | 70 | -1.5 | -500 | fae=13kc | 83 | ||
| 2SB183 | 日立 | AF | " | -12 | -2.5 | -20 | 50 | 85 | 3 | ||||||
| 2SB184 | " | PA | " | -12 | -2.5 | -20 | 50 | 85 | 100 | -2 | -5 | 3 | |||
| 2SB185 | 三洋 | " | " | -25 | -12 | -150 | 200 | 85 | 1 | 12B | |||||
| 2SB186 | " | " | " | -25 | -12 | -150 | 200 | 85 | 1 | 25 | 12B | ||||
| 2SB187 | " | " | " | -25 | -12 | -150 | 200 | 85 | 1 | 12B | 2SD187とコンプリ | ||||
| 2SB188 | " | " | " | -25 | -12 | -150 | 200 | 85 | 1 | 12B | 2S188 | ||||
| 2SB189 | 東芝 | " | " | -25 | -12 | -250 | 250 | 75 | 75 | -1 | -100 | 1 | 62 | 2S189 | |
| 2SB190 | 沖 | AF | " | -25 | -12 | -50 | 90 | 80 | 12A | ||||||
| 2SB191 | " | " | " | -25 | -12 | -50 | 90 | 80 | 12A | ||||||
| 2SB192 | " | " | " | -25 | -12 | -50 | 90 | 80 | 12A | ||||||
| 2SB193 | " | " | " | -25 | -12 | -100 | 200 | 80 | 75 | ||||||
| 2SB194 | " | " | " | -25 | -12 | -100 | 200 | 80 | 75 | ||||||
| 2SB195 | " | " | " | -25 | -12 | -100 | 200 | 80 | 75 | ||||||
| 2SB196 | " | " | " | -30 | -12 | -500 | 500 | 80 | 50 | -2 | -200 | 81 | |||
| 2SB197 | " | " | " | -50 | -12 | -500 | 500 | 80 | 50 | -2 | -200 | 81 | |||
| 2SB198 | 沖 | " | " | -70 | -12 | -500 | 500 | 80 | 50 | -2 | -200 | 81 | |||
| 2SB199 | 富士通 | PA | " | -12 | -2.5 | -300 | 250 | 85 | 80 | -1 | -150 | 71A | |||
| 2SB200 | 東芝 | " | " | -32 | -12 | -400 | 225 | 75 | 75 | -1 | -150 | 0.5 | 77 | ||
